BMW 2-Valve models battery box mounting under the gearbox
Battery box BMW R45 R65 R80 R100 under engine for mounting under the gearbox Stainless steel

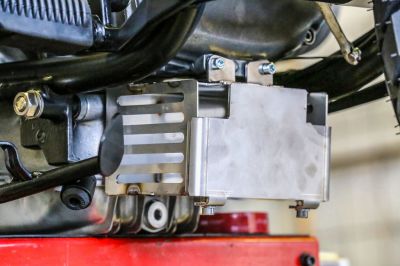

- Mounting under the gear unit
- Mounting only possible without exhaust manifold (2-2 exhaust)
- Stainless steel, extremely light
- Dimensions battery 87x150x105
- Suitable for all BMW R65 R75 R80 R90 R100 models
- Suitable for lithium ion battery HTX 14 or LTM 18

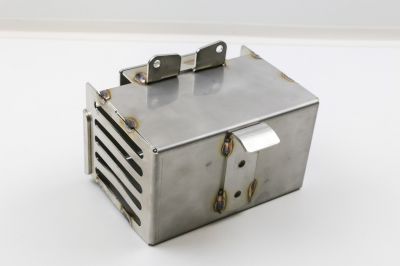

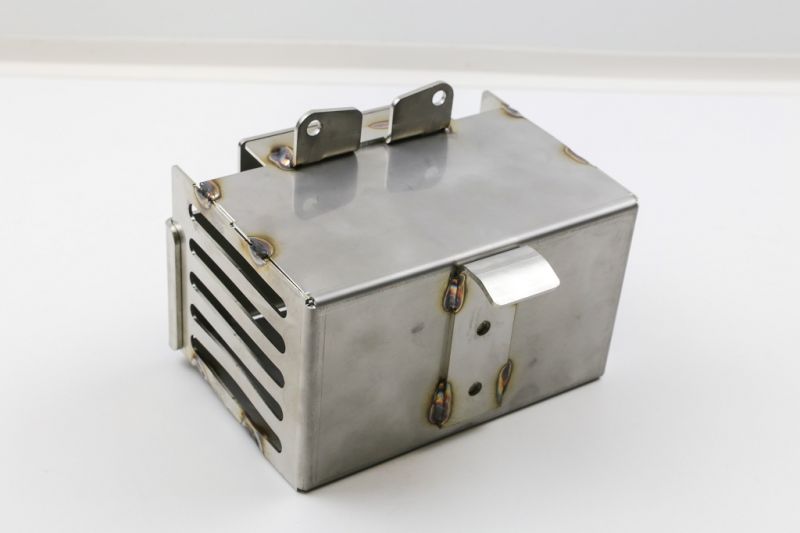

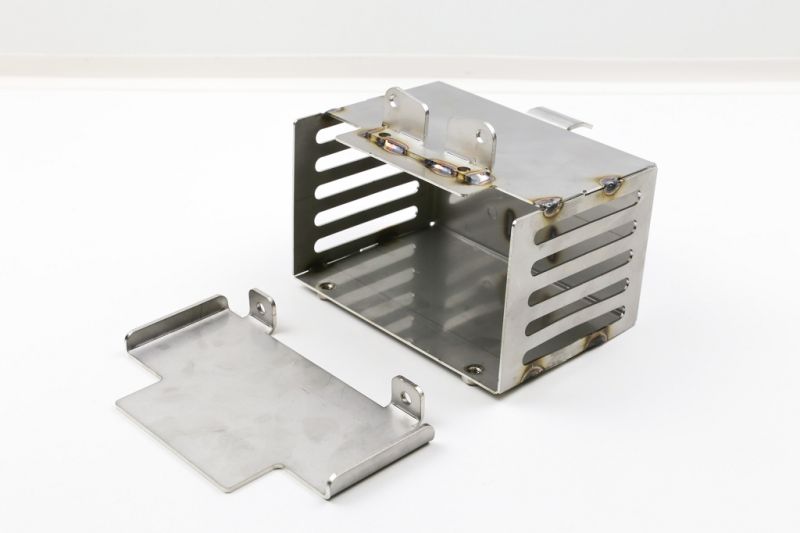

The stainless steel battery box is extremely light and gives your BMW a clear view. It is mounted directly under the gearbox and thus lowers the centre of gravity even further. A clear view through the frame triangle gives the BMW a wiry look. The battery box is designed to hold our lithium ion battery type HTX 14Ah, or for more extensive electrical equipment, type LTM 18. Both batteries do their job without any problems, even with high compaction. The batteries have a weight of 1000g, respectively 1200g. The weight saving is more than 10 kg! A lithium ion battery can withstand six times as many charge cycles as a conventional battery. The self-discharge rate is only 5 percent per month. In the long run a worthwhile purchase.
Battery dimensions: depth x width x height: 87 x 150 x 105
Battery not included in delivery
Important: The battery box can only be mounted if there is no exhaust under the gearbox, i.e. no connecting pipe or pre-silencer. This is usually the case with 2-2 system. We offer such systems for all Twinshock and Monolever models.
There are no off-the-shelf 2-2 systems for the Paralever. Here is only the possibility of a custom design in our house directly on the vehicle. It must be made for modifications brake and shift lever. We need for it then their complete bike.
The main stand could still be used, but the middle connecting strut must be moved. We ourselves always dismantle the main stand complete. We know from customers, however, that they have after the displacement of the strut the stand is in use.
The main stand could still be used, but the middle connecting strut must be moved. We ourselves always dismantle the main stand complete. We know from customers, however, that they have after the displacement of the strut the stand is in use.
Installation tip: We continue to use the original plus cable for our conversion. We lay this from the starter through the upper engine cover, through the exhaust filter box (or alternatively accessory starter hood) at the rear past the transmission to the "underengine battery box".
For the -ground we use a new cable in 95mm length. This we screw between the negative pole of the battery and the rear gearbox cover.
Product video
Twinshock Modelle:
R45 78-85 -- R60/5 69-79 -- R60/6 73-76 -- R60/7 76-78 -- R65 78-85 -- R65LS 81-85 -- R75/5 69-73 -- R75/6 73-76 -- R75/7 76-77 -- R80/7 77-84 -- R80RT 82-84 -- R90/6 73-76 -- R90S 73-76 -- R100/7 76-78 -- R100S 76-80 -- R100RS 76-84 -- R100RT 78-84 -- R100CS 80-84 -- R100 80-84 -- R100T 78-80
Gabeldurchmesser 36mm Federbeinlänge 330mm
R45 78-85 -- R60/5 69-79 -- R60/6 73-76 -- R60/7 76-78 -- R65 78-85 -- R65LS 81-85 -- R75/5 69-73 -- R75/6 73-76 -- R75/7 76-77 -- R80/7 77-84 -- R80RT 82-84 -- R90/6 73-76 -- R90S 73-76 -- R100/7 76-78 -- R100S 76-80 -- R100RS 76-84 -- R100RT 78-84 -- R100CS 80-84 -- R100 80-84 -- R100T 78-80
Gabeldurchmesser 36mm Federbeinlänge 330mm
Monolever:
Straße: R65 85-93, R80 84-92, R80RT 84-94, R100RT 87-96, R100RS 86-92
Gabeldurchmesser 38,5mm Federbeinlänge 409mm
Enduro: R80G/S, R80ST 82-84, R65GS 87-92
Gabeldurchmesser 36mm Federbeinlänge GS 365mm, ST 350mm
Straße: R65 85-93, R80 84-92, R80RT 84-94, R100RT 87-96, R100RS 86-92
Gabeldurchmesser 38,5mm Federbeinlänge 409mm
Enduro: R80G/S, R80ST 82-84, R65GS 87-92
Gabeldurchmesser 36mm Federbeinlänge GS 365mm, ST 350mm
Paralever:
Straße: R80R 92-96, R100R 94-96, R100R Mystik 94-96
Gabeldurchmesser 41mm Federbeinlänge 475mm
Enduro: R80/100GS 87-90, R100GS Paris Dakar 89-90, R80/100GS Paris Dakar 90-96
Gabeldurchmesser 40mm Federbeinlänge 495mm
Straße: R80R 92-96, R100R 94-96, R100R Mystik 94-96
Gabeldurchmesser 41mm Federbeinlänge 475mm
Enduro: R80/100GS 87-90, R100GS Paris Dakar 89-90, R80/100GS Paris Dakar 90-96
Gabeldurchmesser 40mm Federbeinlänge 495mm
