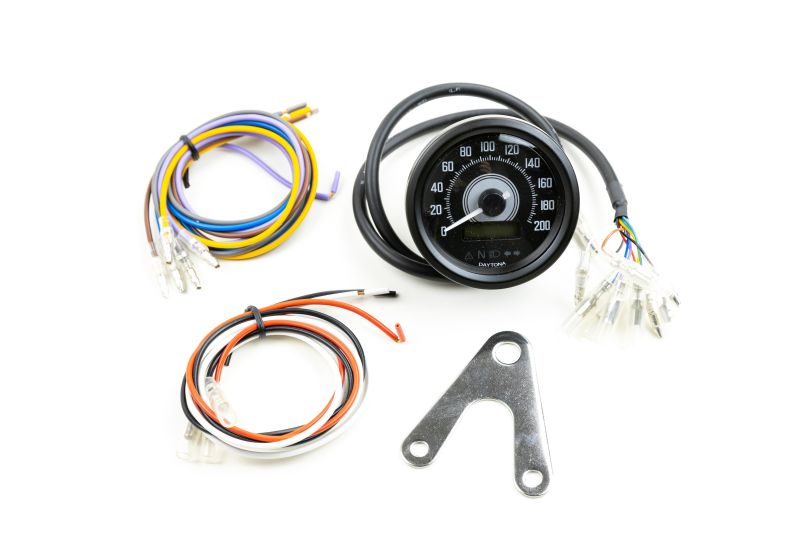

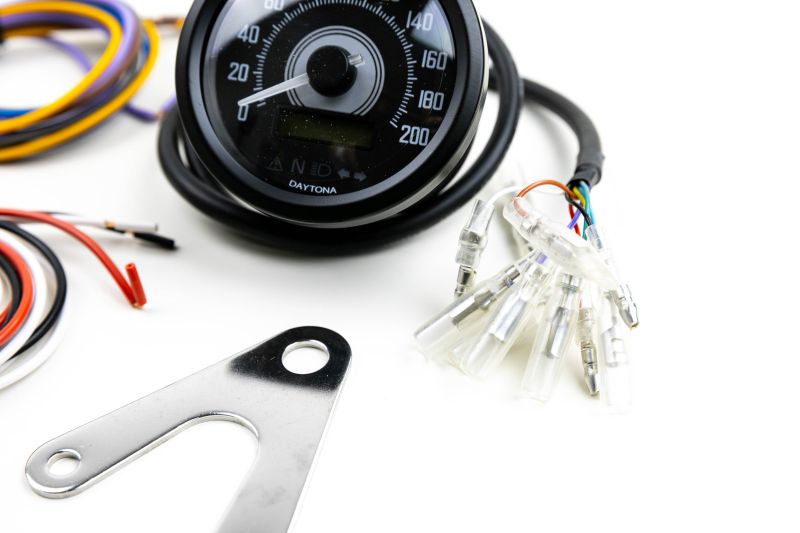

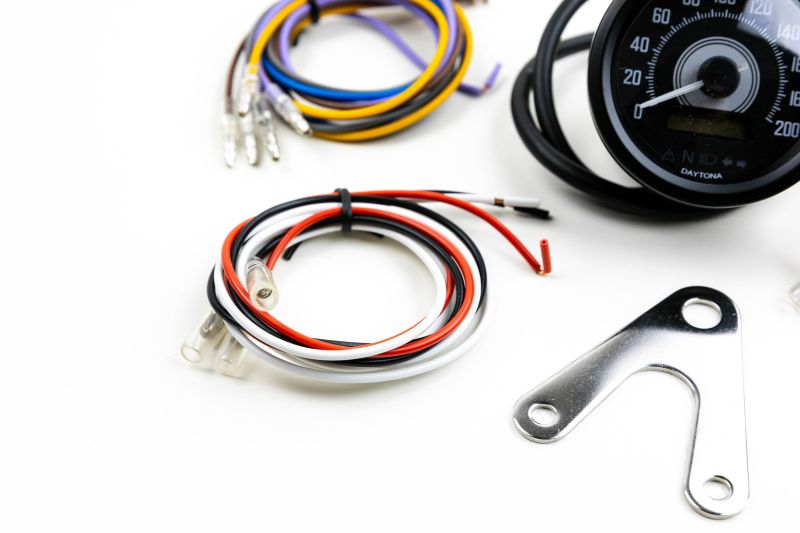

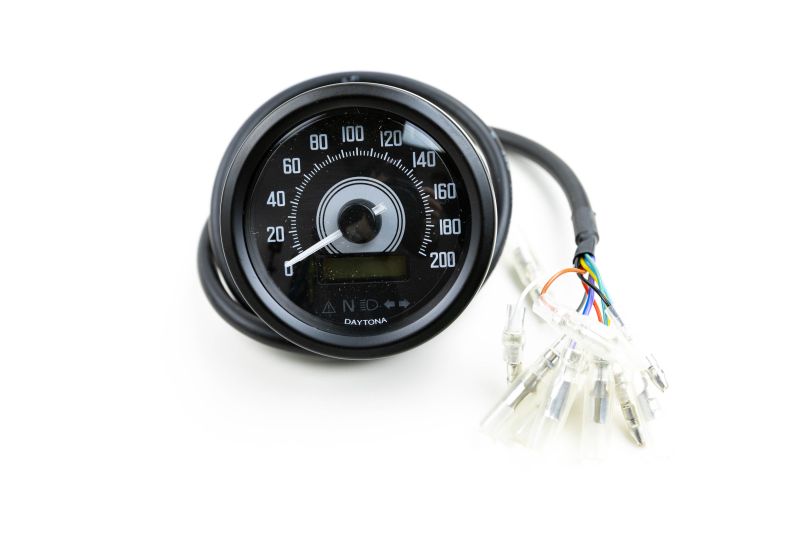

Small round instrument with a diameter of 60 mm and analog speed display up to 200 km/h with indicator lights and display.
Height 42.5 mm
Displayinformation
- Odometer up to 99,999 km
- Trip meter A 99,999 km
- Trip meter B 99,999 km
- Maximum Speed
- Voltage
- Power supply 9V - 12V DC
Indicator lights
- Oil pressure
- Turn signals
- High beam
- Neutral
Universal use on all BMW 2-valve carburetor models; our electronic speed sensor SE-60-20120-01-003 is recommended for speed reduction.
If the vehicle is equipped with an electronic speed sensor, the speedometer can be used directly with the original electronic speedometer pulse.
Attention: When converting the BMW electrics to a different speedometer, the original charge indicator lamp is usually removed or replaced by an LED.
In this case, a resistor must be installed in place of the light, otherwise the battery will not charge.
This resistor is already included in our instrument-specific wiring harnesses.
