BMW R75 R80 R90 R100 Twinshock 2-pers. Roadster rear conversion kit with TÜV

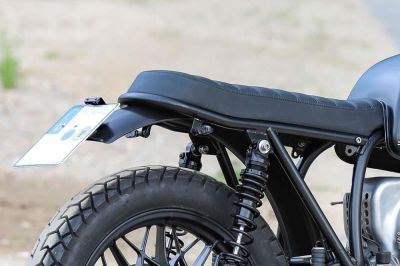

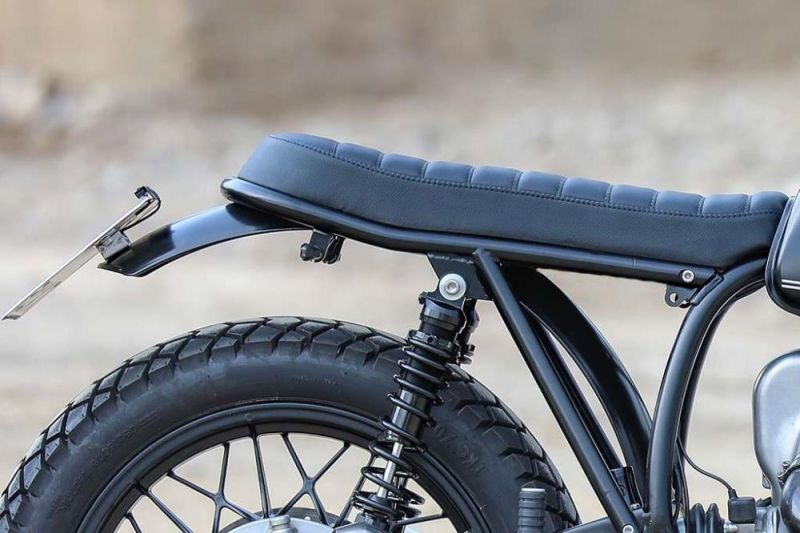

The product photos show a rear frame without battery box. However, this is of course part of the kit. The battery is located on the rear frame directly under the seat.
Complete BMW Scrambler BMW Roadster rear conversion kit for the BMW R80 R100 Twinshock models. The optics and the equipment correspond to our Sport-Evolution Concept Bikes. The seat is supplied ready upholstered.
- Delivery ready for installation
- Sport-Evolution rear frame
- Sport-Evolution bench completely upholstered
- Sport-Evolution battery box
- Lithium Ion Battery
- Rear fender aluminium short
- Adjustable license plate holder Stainless steel
- license plate light
- Blinker/rear light combination shadow
- Stainless steel screw set included
- Length rear frame 540mm (gives a seat length of 600mm)
- Width rear frame 200mm
- BMW R80 R100 Twinshock models
- TÜV parts certificate according to § 19.3.
Twinshock:
R75/7 76-77 -- R80/7 77-84, R80RT 82-84 -- R90S 73-76 -- R100/7 76-78, R100S 76-80, R100RS 76-84, R100RT 78-84, R100CS 80-84, R100 80-84, R100T 78-80
R75/7 76-77 -- R80/7 77-84, R80RT 82-84 -- R90S 73-76 -- R100/7 76-78, R100S 76-80, R100RS 76-84, R100RT 78-84, R100CS 80-84, R100 80-84, R100T 78-80
The rear frame and the fender can optionally also be ordered black powder-coated.
subframe powder coating klick here
rear fender powder coating
You don't think you can do the conversion yourself? No problem, of course we can do that for you.
Including TÜV parts certificate according to §19.3. entry at every TÜV place easily possible.
subframe powder coating klick here
rear fender powder coating
You don't think you can do the conversion yourself? No problem, of course we can do that for you.
Including TÜV parts certificate according to §19.3. entry at every TÜV place easily possible.
| Parts list rear conversion kit SE-30-21516-01-001 | |
| Sport-Evolution Rear frame with lipp for 2 person | SE-30-21052-01-001 |
| Sport-Evolution seat completely ready for assembly black, radial quilted for 2 person, length 600mm | SE-30-215XX-01-003 |
| Rear fender aluminium 145mm wide, 800mm long | SE-30-21063-03-000 |
| Bracket for mudguard attachment | SE-30-21048-03-000 |
| License plate holder adjustable at angle | SE-30-13502-03-000 |
| Lithium Ion Battery HJP14-FP | 887070134 |
| Sport-Evolution battery box in the rear | SE-30-11018-01-001 |
| License plate lighting | 70280999 |
| Including stainless steel screw set | SE-30-21542-01-002 |
| Turn signal/tail light combination shadow | 7050618 |
| Reflector universal for screwing with holder | 70259110 |
| Options | Option choose here |
| Rear frame rear powder coating | PULVERN HR |
| Mudguard rear powder coating | PULVERN HF |
| Battery box powder coating | PULVERN BK |
| Retaining straps for 2-person operation | SE-40-21574-03-000 |
Possible seat colours and patterns (please specify the exact vehicle model when ordering!)
The standard color is black with double cross stitching, the offered brown color is possible without surcharge.
Surcharge for the diamond pattern is 75 €, please simply add the following item to the shopping cart:
Surcharge diamond stitching in rear frame kits
