5 3/4 inch Bates style headlight
The popular headlight with its classic hemispherical style makes the headlight the perfect part for all conversion projects. The tested headlight is also robust and easy to install.

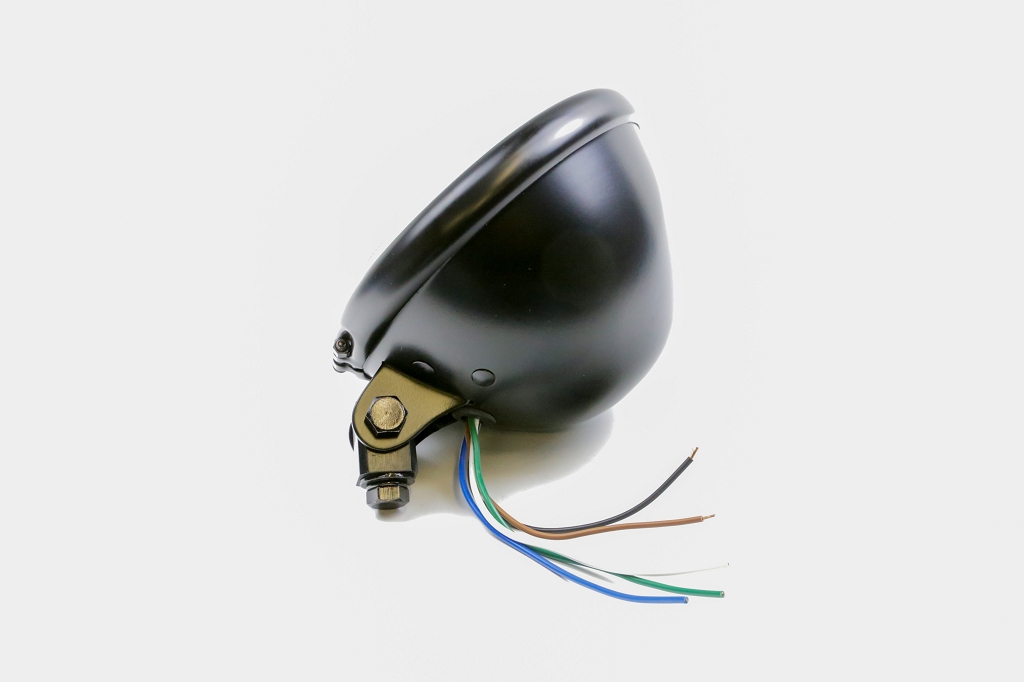

Classic headlight with central mounting at the bottom. This makes it ideal for BMW conversions. The lower BMW triple clamp has a small central projection to which the headlight can be attached very easily and attractively using a threaded hole. The proportions fit perfectly at 145mm!
-High-quality metal housing
-Embossed glass
-E-tested with approval
-Diameter 145mm
-with road approval
-H4 bulb included in scope of delivery

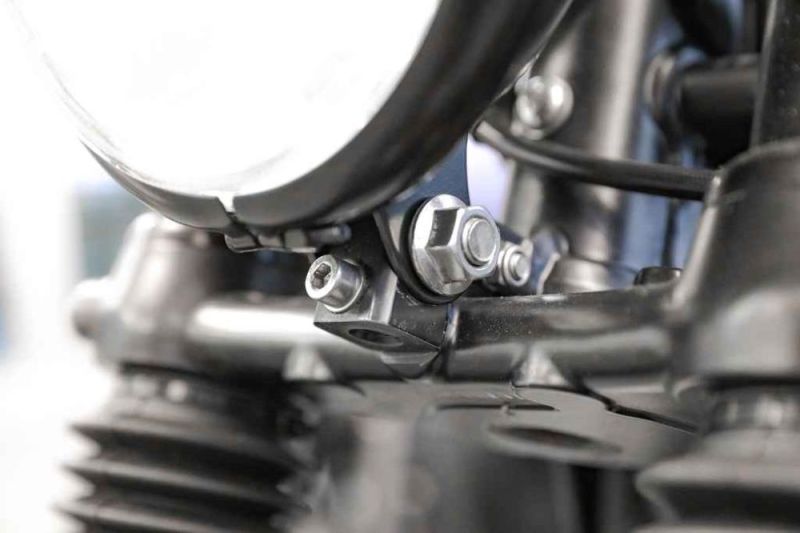

Installation tip (see also the picture): In the case of mounting on the BMW 2-valve models, we drill a hole in the small projection on the front of the triple clamp and cut an M6 thread into it. If necessary, the moulding edge on the projection must be smoothed out a little to create a flat surface so that the headlight can hold well.

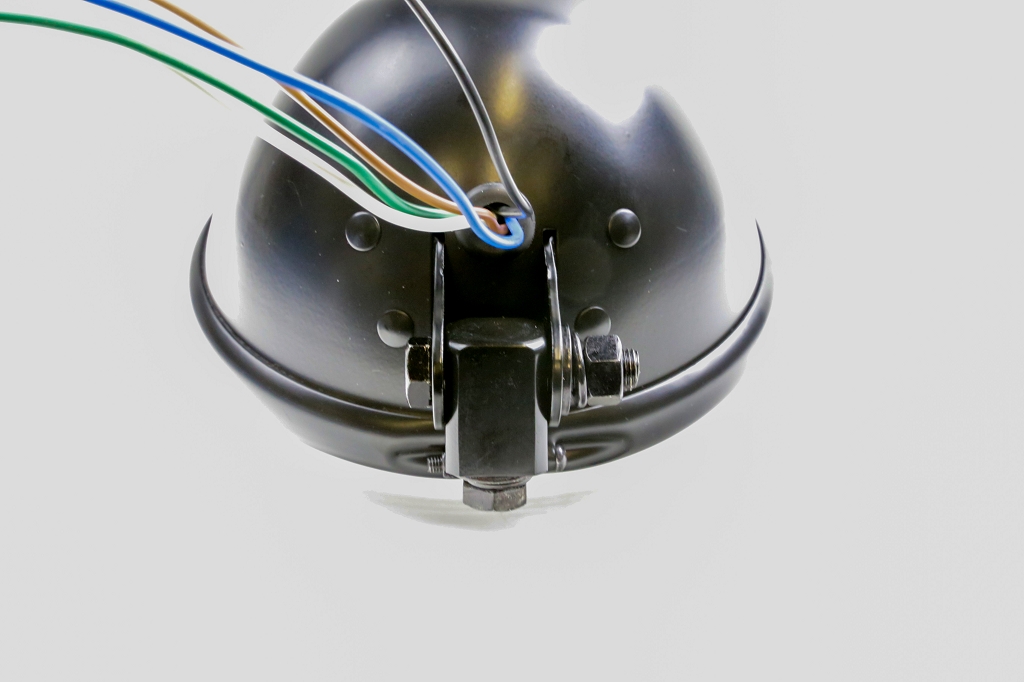

Then simply screw the headlight bracket to the lower triple clamp. (Not all headlights have a 6 mm hole in the headlight bracket. In this case, the hole must be drilled through the front of the bracket)
