MOTOGADGET motoscope pro Dashboard

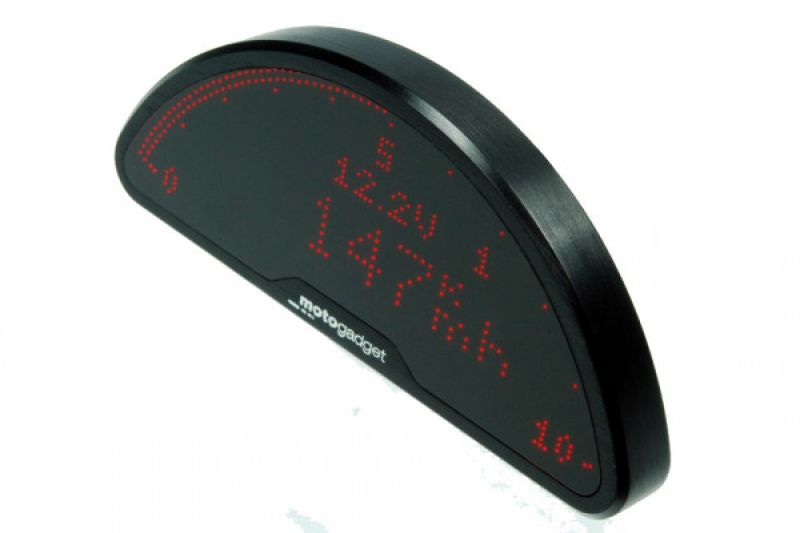

The motoscope pro is the latest digital dashboard generation from motogadget. The instrument has an ABE and does not need to be registered. Cutting edge technology makes an ultra flat housing design possible.

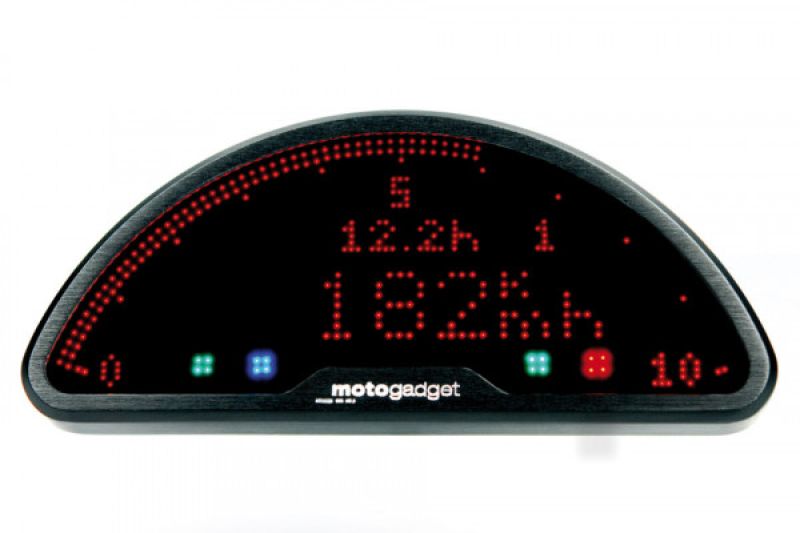

734 LEDs, controlled by a 16bit Risc processor, form the almost fully self-illuminating display matrix. It ensures optimal readability - even in direct sunlight. Automatic brightness adjustment is a matter of course. An analog LED band with drag pointer function displays the speed in a freely scalable manner. The main and secondary displays can be configured by the user. Another display area shows the engaged gear.

Four indicator lights are already integrated and can be used for many more input signals with the help of the display. For the connection of the indicator lights and/or the measuring inputs the Breakout Box A or B is additionally required. See above tab 'Breakout Boxes'. The motoscope pro has a complete CAN-Bus interface and is thus prepared for many future developments of Plug 'n Ride solutions. See e.g. Breakout Box Triumph.

The dashboard communicates via its own digital single wire bus (m-BUS) with additional breakout boxes that easily extend the range of functions. Thus, the dashboard is extremely versatile and can be adapted to very many vehicles and applications.

The aluminum housing is milled from solid, anodized and can be easily mounted by two threaded bushings on the back.

Technical data & functions:
Length/width/depth: 109 mm/ 47 mm/ 11 mm
Weight with cable: approx. 100 g
Mounting: 2 x M3 threaded bush
Current consumption in operation: max. 200 mA (load-dependent)
Current consumption in idle state: 0.4 mA
Operating voltage: 9 V - 15 V
Operating temperature: -20° +80°C
Tachometer (LED band) = 0 6, 8, 10, 12, 14, 16, 18 krpm (adjustable)
Speedometer = 0 350 km/h o. mph
Trip meter A & B = up to 999.9 km or mi
Total kilometers (adjustable) = up to 250000 km or mi
Hour meter/service = 0 9999.5 h
Clock = 23:59 h/min
Travel time display = 0 99:59:59 h/min/s
tachometer (on LCD) = 0 20000 rpm
adjustable speed warning (shift flash) = 0 20000 rpm
on-board voltage indicator = 9 18 V
low voltage warning = warning when below approx. 11V
time measurement = 0 - 100 km/h o. 0 - 60 mph 0.00 30.59 sec.
instantaneous acceleration = +/- 0.00 1.50 G
average speed = 0 350 km/h o. mph
Maximum speed = 0 350 km/h o. mph
max. speed = 0 20000 rpm
max. positive acceleration = +1.50 G
max. negative acceleration = - 1.50 G
gear indicator = N, gear 1 - 6
green control LED (with breakout box A/B) = idle (N)
green control LED (with breakout box A/B) = turn signal left, right
blue control-LED (with breakoutbox A/B) = high beam
red warning LED (with breakout box A/B) = various warning functions
fuel/reserve (with breakoutbox A/B) = 0 - 100% with low-warning
air temperature* (with breakout box B) = -20 - 80 °C / -4 - 176 °F with high/low warning
Water temperature* (with breakout box B) = 40 - 120 °C / 104 - 248 °F with High/Low warning
Oil temperature* (with breakout box B) = 40 - 150 °C / 104 - 302 °F with high/low warning
Oil pressure* (with breakout box B) = 0.5 - 8 bar / 0 - 116 psi with High-/Low-warning

Scope of delivery:
motoscope pro with approx. 70 cm connection cable
speedometer sensor M5 x 0,5 fine thread (stainless steel, IP67) with approx. 150 cm connection cable
2 magnets
10 x cable end connectors
flying fuse
2 stainless steel fixing screws
detailed mounting and operating instructions.

Notice:
- Touch sensor is no longer included.
- Please order the breakout box to connect indicator lights (see Breakout Box Std.)

Attention: When converting the BMW electrical system to another speedometer, the original charge indicator lamp is usually omitted or replaced by an LED.
In this case, a resistor must be mounted instead of the lamp, otherwise the battery will not be charged.
This plug and play wiring harness can be used with all SE harnesses as well as the original harness.
