The signal cables for the indicator lights in the motoscope pro are connected to the msp Breakout Box A. The signal cables for the indicator lights in the motoscope pro are connected to the msp Breakout Box A.
Convenient screw terminals make connection work child's play. Small dimensions make it possible to hide the numerous cables and the box anywhere on the vehicle.
Between the box and the motoscope Pro only one single cable is needed for signal transmission (m-Bus).
The Breakout Box is waterproof and insensitive to vibration.
Dimensions (LxWxH): 26 x 39 x 10 mm
Inputs for:
Tank capacity/reserve
oil pressure switch
Indicator right
Turn signal left
high beam
Neutral
engine warning light

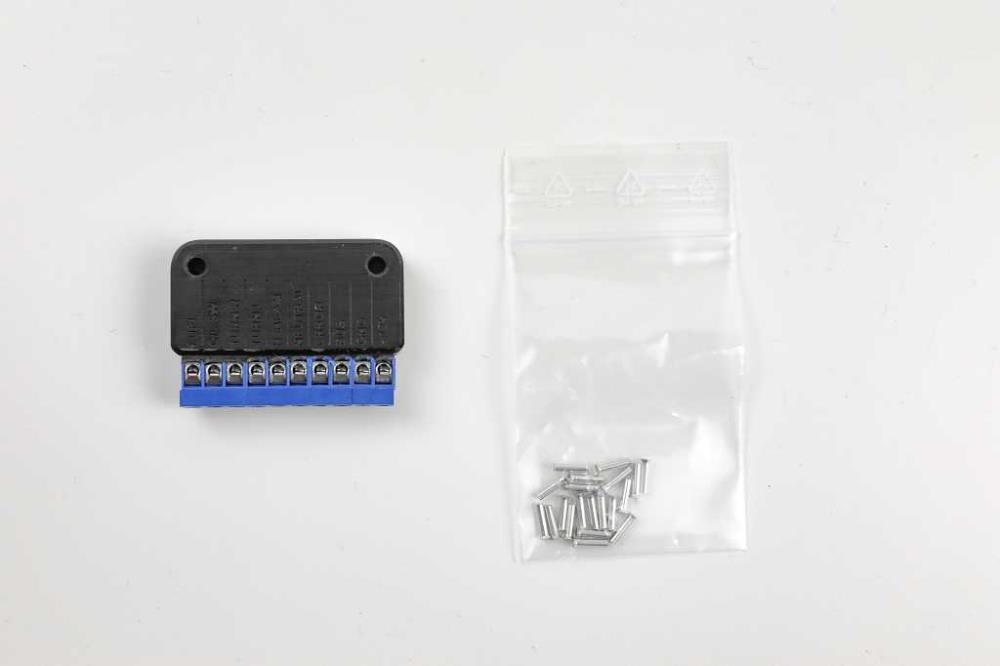

Scope of delivery: 1 piece
