The SE tube handlebar in 28. 6 mm fits perfectly to your Roadster or Scrambler conversion. The dimensions create the perfect balance between comfort and driving dynamics. Handlebar is supplied with an ABE, registration not required.

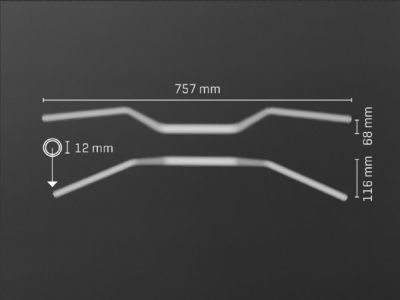

Diameter 28,6m butted
handlebars outside in grip 22,0mm
width 757mm
height 68mm
depth 116mm
including ABE
Suitable for BMW fittings
Suitable for SE cast aluminium handlebar switches
Handlebar is supplied with an ABE, registration not required.
Attention: For the assembly of the 28,6mm handlebars other handlebar brackets are necessary!
Note on the ABE: The ABE of the handlebar refers to the BMW R100CS / Type 247, which was the most powerful model of the two-valve series with its 70 hp. So far we know of no case in which this design was not accepted. Should you have any doubts, the handlebars can be registered with the ABE as a basic bearing. The ABE as such confirms the suitability of the component, the suitability for mounting is then approved by the test engineer.
ABE to the handlebar simply download under DOKUMENTS
Tip: The handlebars have an inner diameter of 12 mm. For the installation of handlebar end turn signals, it may be necessary to drill out the handlebar inside by approx. 30mm to 14mm, depending on which make is to be installed.
This is the case with the Motogadget handlebar end turn signals in conjunction with the SE aluminium handlebars (22mm, 28.6mm). If you do not want to drill out the handlebars, it is also possible to use the Kellermann BL2000 handlebar end turn signals, which can be mounted without any further modifications.
