Rear frame loop 25mmx2mm
-
2-person version
- Length rear frame 540mm (gives a seat length of 600mm)
- Width rear frame 200mm
-
3 CNC milled/turned adapter pieces
-
Left support milled in angle/radius
-
Cross-connection with milled radii
-

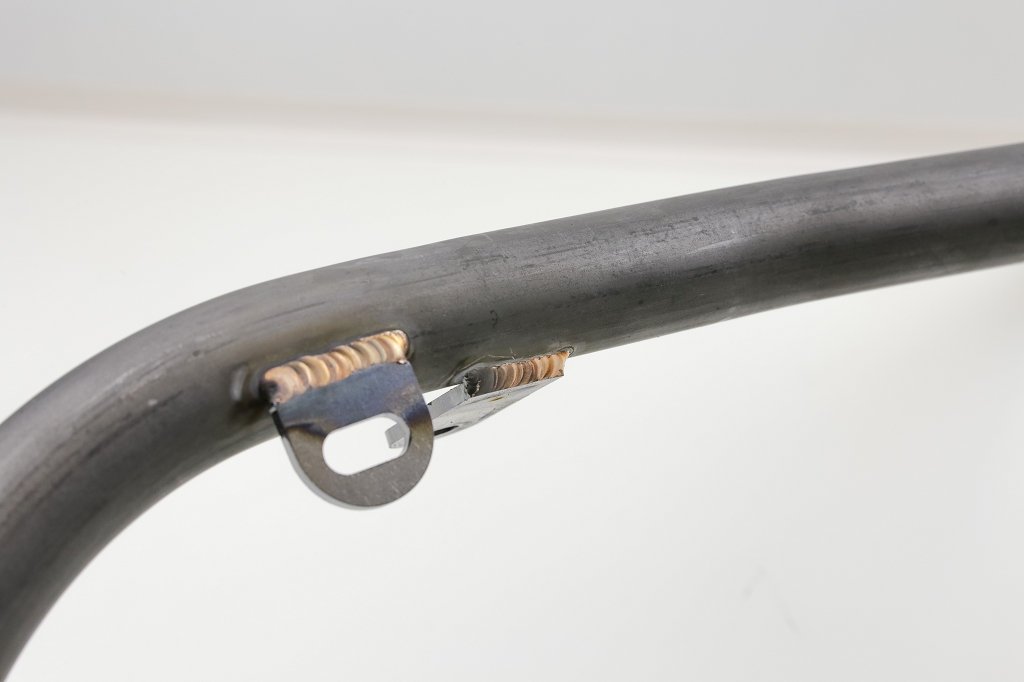

4 welding eyes for seat plate
-
2 welding lugs for indicator attachment
-
2 welding lugs for mudguard fixing
-
Suitable for paralever models
-
Black powder-coated optionally available
-
TÜV parts certificate according to § 19.3.
Including TÜV parts certificate according to §19.3. entry at every TÜV place easily possible.

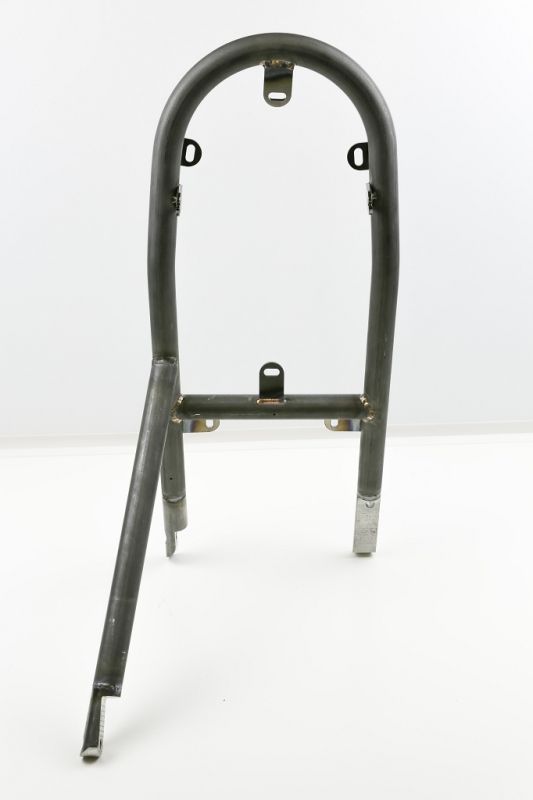

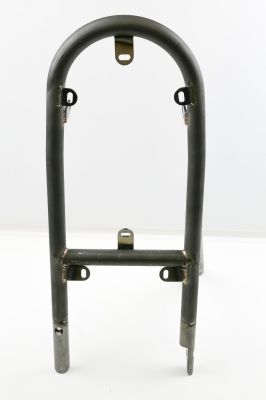

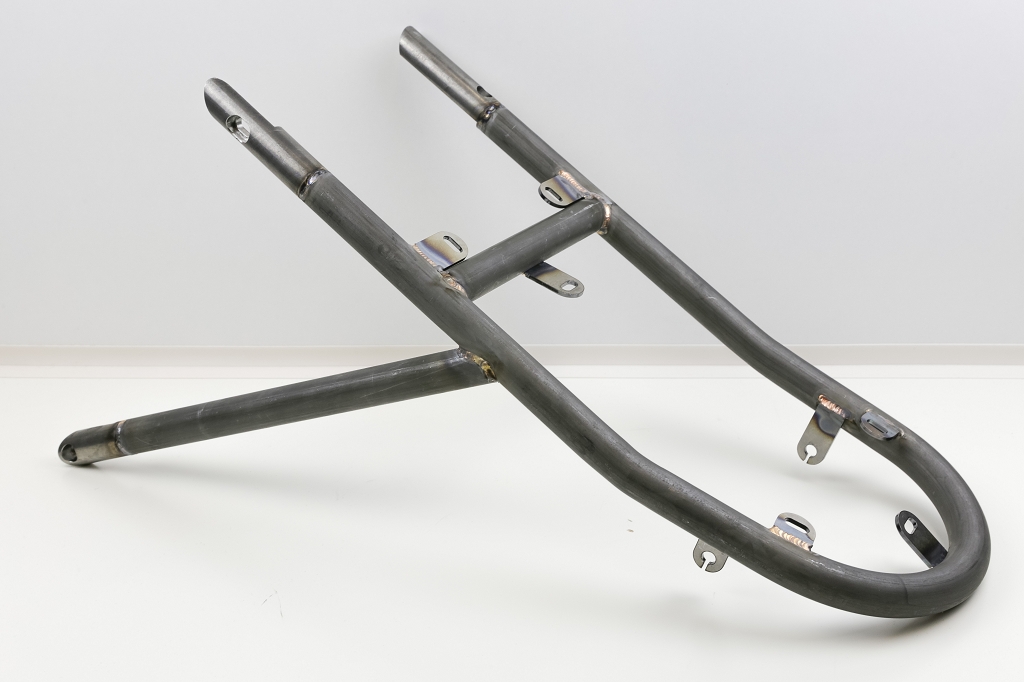

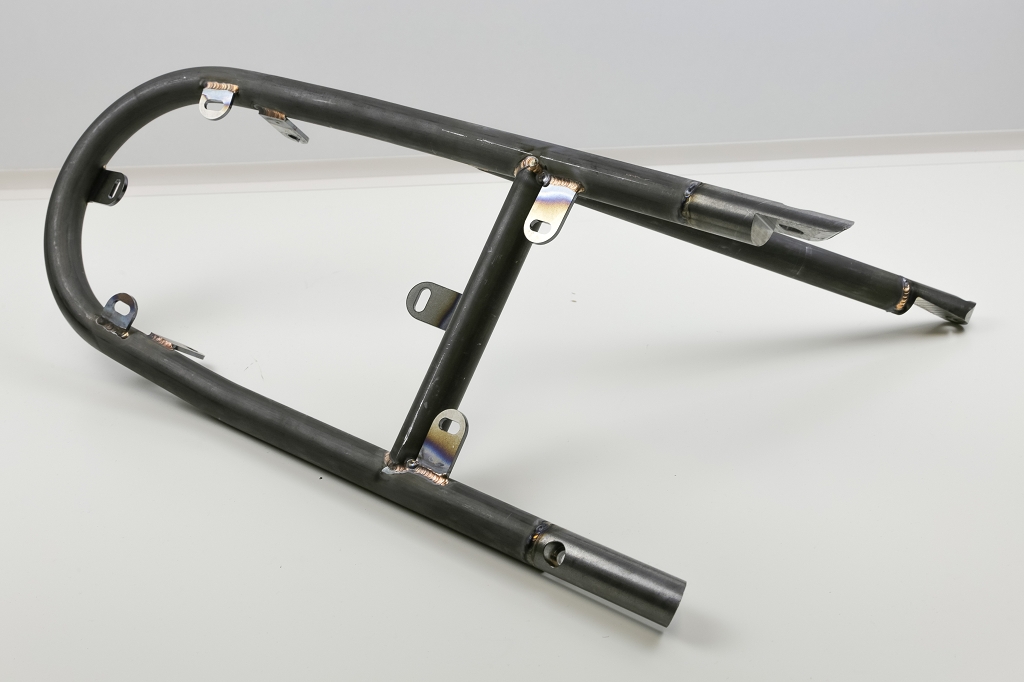

Rear frame made of high-quality turned/milled parts completely welded. It has 4 welding lugs for fixing a bench plate and two mounting lugs for mounting the flashers. The length corresponds to the regulations for 2 persons operation.
Best fitting SE screw set SE-30-21541-01-002 order directly with
Paralever Modelle:
Street: R80R 92-96, R100R 91-96, R100R Mystik 94-96
Dirt: R80/100GS 87-90, R100GS Paris Dakar 89-90, R80/100GS Paris Dakar 90-96
