BMW R65 R80 R100 Monolever rear frame with TÜV certificate
Rear frame loop 25mmx2mm
2-person version
- Length rear frame 540mm (gives a seat length of 600mm)
- Width rear frame 200mm
3 CNC milled/turned adapter pieces
Left support milled in angle/radius
Cross-connection with milled radii
4 welding eyes for seat plate
2 welding lugs for indicator attachment
2 welding lugs for mudguard fixing
Suitable for monolever models
Black powder-coated optionally available
TÜV parts certificate according to § 19.3.
Including TÜV parts certificate according to §19.3. entry at every TÜV place easily possible.

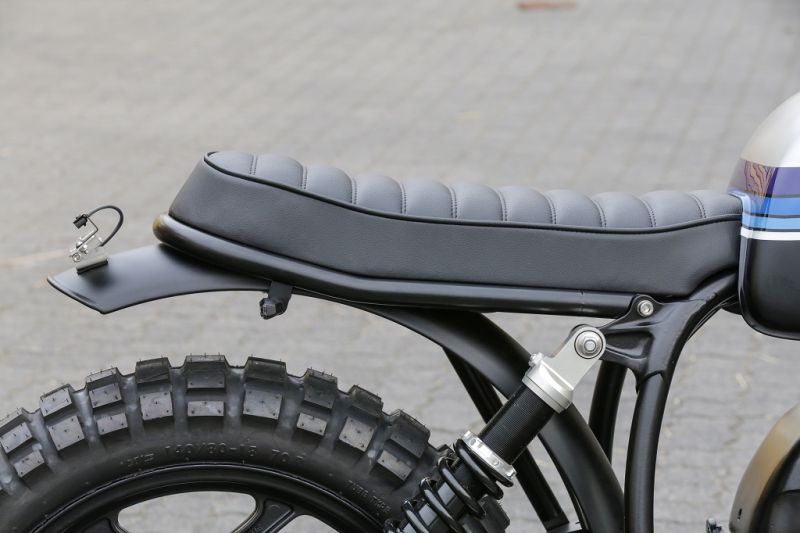

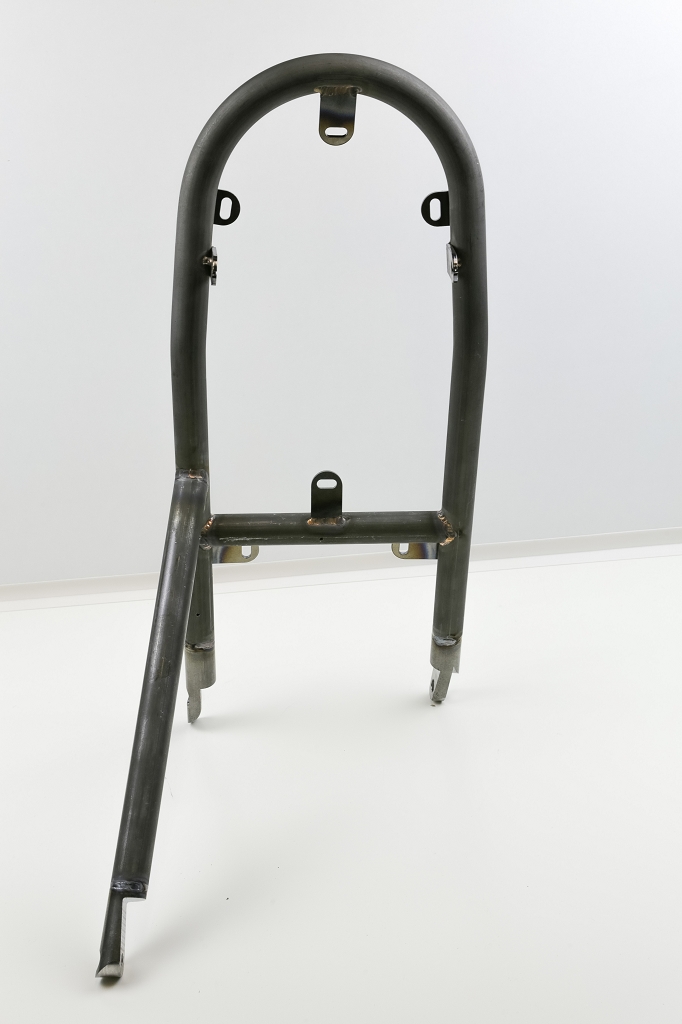

Rear frame made of high-quality turned/milled parts completely welded. It has 4 welding lugs for fixing a bench seat plate and two mounting lugs for mounting the indicators. The length corresponds to the provisions for 2 persons operation.
Best fitting SE screw set SE-30-21540-01-002 order directly with.
Monolever Models:
R65 85-93, R80 84-92, R80RT 84-94, R100RT 87-96, R100RS 86-92
