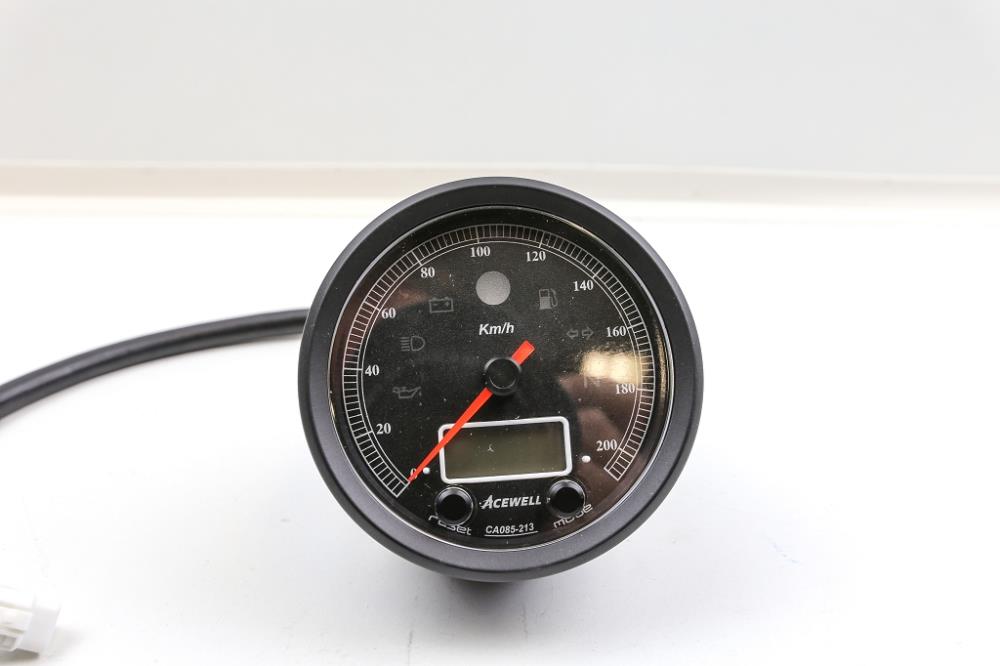

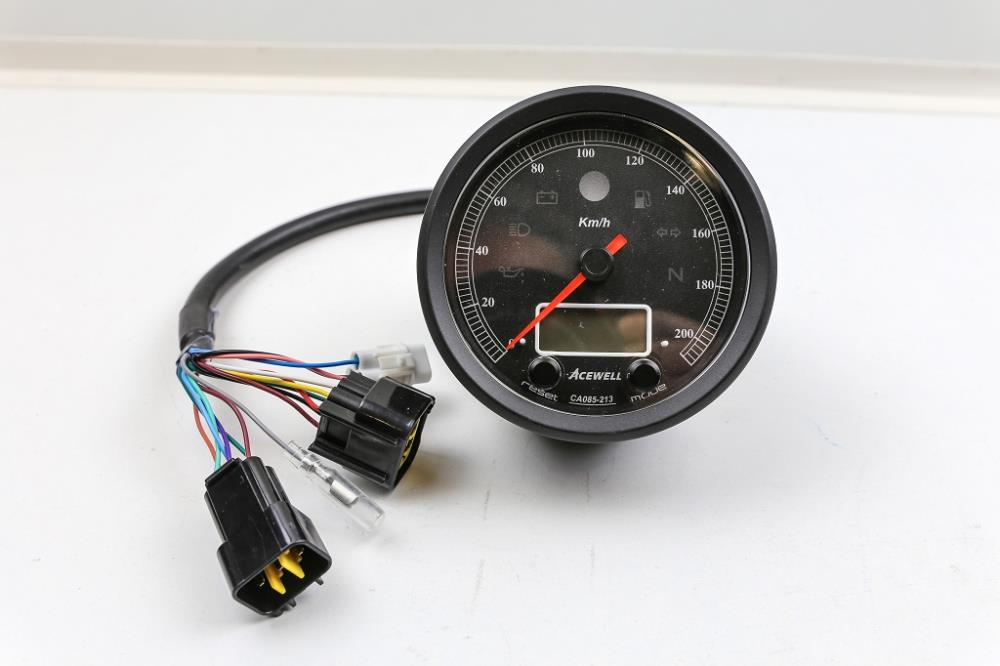

The Acewell motorcycle speedometer from the ACE-CA085 series is a round instrument with needle speed indicator and 6 other values at a glance:
Recommendation: Order speed sensor (electronic tachometer shaft) at the same time
- Needle Speed
- digital speed display
- Bar fuel gauge
- digital temperature display
- a measured value of your choice (all values visible simultaneously)
- Digital display of #
- Trip meters TRIP 1 + 2
- total mileage
- Integrated lap timer, 99 lap times storable
- Average and maximum speed display
- Average and maximum speed display
- Temperature - additional storage of maximum temperature reached
- time
- voltmeter
- travel time
- operating hours counter
- Adjustable switching and overtemperature warning with LED display
- 3 backlights adjustable! (Red, Green, Blue)
- 6 LED control lights included - choose between 3 layouts: see control lights layout 1-3
- Voltage-free storage of all data
- The time is displayed when the ignition is switched off.
- Adjustable wheel circumference for all wheel types: Setting range 1-3999 mm kilometers or miles - Display switchable
- Fuel gauge for different tank sensors with +/;- 100 Ohm, 250 Ohm, 510 Ohm or OFF (no fuel gauge visible in the display)
- When new, the total mileage is freely adjustable for the first 30 km - then not any more.
- Extremely water, vibration and shock resistant (vibration 8G, shock 100G tested)
- E-certified!
- ABE available
For use on BMW 2-valve boxers R45/65/75/80/90/100: When converting the BMW electrical system to another speedometer, the original charge indicator lamp is usually omitted or replaced by an LED.
In this case, a resistor must be mounted instead of the lamp, otherwise the battery will not be charged.
This resistor can be used with all SE harnesses as well as the original harness.
